What is CondorShell?

CondorShell is a plugin that allows Structural Engineers to create complex foundation and slab models in Grasshopper and transfer the information in real time to a CSI SAFE instance.

Good to know: CondorShell lets you transfer not only complex geometry created in Rhino 3D or Grasshopper, it lets you create a full model in Grasshopper without need to go to CSI SAFE. This opens the door to create parametric models that can be change at will and updated immediately in CSI SAFE

Rhino Grasshopper and Safe interaction with CondorShell quick demo

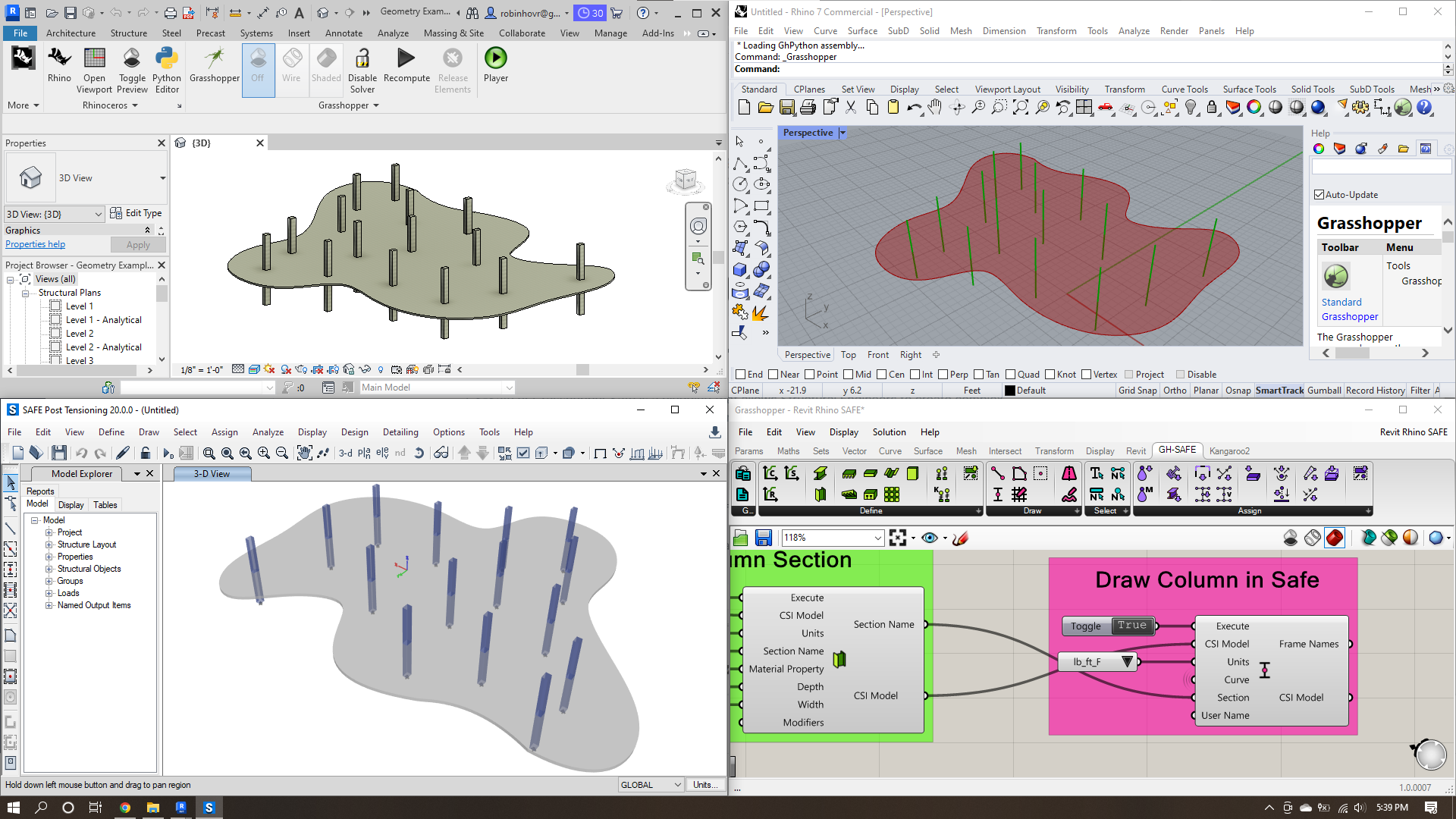

Revit, Rhino - Grasshopper and Safe interaction with Rhino.Inside and CondorShell component quick demo

Follow our handy guides to get started on the basics as quickly as possible:

Installation InstructionsGeneralDefineDrawSelectAssign
NextInstallation Instructions

Last updated 2 years ago

Condor Shell
Rhino Grasshopper and Safe interaction with CondorShell
Revit, Rhino - Grasshopper and Safe interaction with Rhino.Inside and CondorShell component
